9T
- Applicable Models: JAC Gelifa A5 Series, JAC Junling V9 and other JAC 4×2 medium & heavy-duty trucks
- OEM Part No:9T
- Product Type: 9T Axle Assembly
- Rated Load:9 Ton, Suitable for 6.8m cargo/box/refrigerated truck
- Reinforced Axle Housing: High rigidity & overload resistance
- High Strength Alloy Steel Gear & Shaft: Wear-resistant and long service life
- Multiple Optional Speed Ratios: Adapt to highway and mountain transport
- Drum Brake with ABS Interface: Stable braking performance
- Integrated Sealing Design: Prevent oil leakage
- Strict Bench & Load Test Before Delivery: Dependable quality
- Spare parts available separately
Description
| Type | Chassis System Parts | Application | JAC Medium & Heavy Duty Trucks |
|---|---|---|---|
| Truck Model | JAC Gelifa A5 Series, JAC Junling V9, 4×2 6.8m trucks | Material | High Strength Alloy Steel + Cast/Welded Axle Housing |
| OEM Number | 9T | Warranty | 12 Months |
| Item Name | 9T Axle Assembly | Delivery Time | 5-10 Days |
| Place Of Origin | China | MOQ | 1 |
| Brand Name | JAC | Payment | TT, LC |

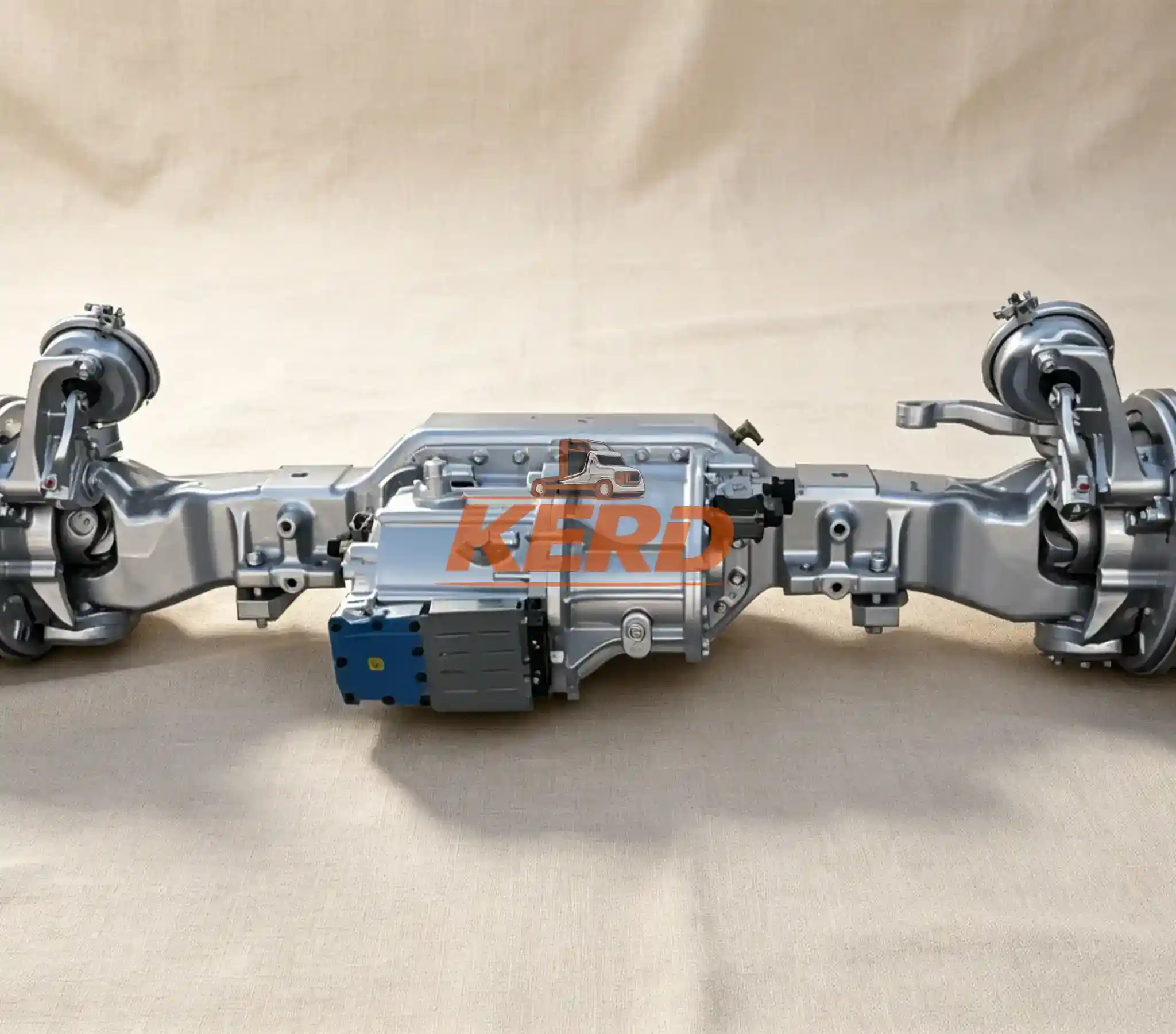

9T Axle Assembly is chassis system spare part for JAC medium & heavy-duty trucks. This 9-ton rear axle assembly serves as the core load-bearing and power transmission component of the truck chassis. It bears the vertical load of the vehicle, transmits driving torque from the transmission system to wheels, and realizes speed reduction and torque increase through the main reducer.
The axle housing adopts reinforced casting or high-strength welded steel structure. Key components including main reducer, differential, axle shaft and brake assembly are made of high-strength alloy steel. It features high structural rigidity, strong overload resistance and excellent impact resistance. Multiple optional speed ratios such as 4.11, 4.33, 4.875 are available to fit different working conditions, covering highway logistics, bulk cargo transportation and mountainous heavy haul scenarios.
The assembly is equipped with reliable drum brake structure and reserved ABS installation interface. It can withstand long-time vibration, shock and temperature fluctuation during continuous heavy-load operation. Every 9T axle assembly undergoes strict load test, bench running test and sealing inspection before delivery to guarantee stable performance and low failure rate. It is a high-quality OEM replacement axle assembly.
